EROAM: Event-based Camera Rotational Odometry and Mapping in Real-time

Wanli Xing^1,2
Shijie Lin^1,2
Linhan Yang^1,2
Zeqing Zhang^1,2
Yanjun Du³
Maolin Lei⁴
Yipeng Pan^1,2
Chen Wang^1,2
Jia Pan^1,2†

¹Department of Computer Science, The University of Hong Kong
²Centre for Transformative Garment Production
³The Chinese University of Hong Kong
⁴Istituto Italiano Di Tecnologia (IIT)
^†Corresponding author

Abstract

This paper presents EROAM, a novel event-based rotational odometry and mapping system that achieves real-time, accurate camera rotation estimation. Unlike existing approaches that rely on event generation models or contrast maximization, EROAM employs a spherical event representation by projecting events onto a unit sphere and introduces Event Spherical Iterative Closest Point (ES-ICP), adapting ICP techniques to event camera data. This innovative approach bridges the gap between event-based vision and 3D point cloud processing techniques. The spherical representation simplifies rotational motion formulation while enabling continuous mapping for enhanced spatial resolution. Combined with parallel point-to-line optimization, EROAM achieves efficient computation without compromising accuracy. Extensive experiments on both synthetic and real-world datasets show that EROAM significantly outperforms state-of-the-art methods in terms of accuracy, robustness, and computational efficiency. Our method maintains consistent performance under challenging conditions, including high angular velocities and extended sequences, where other methods often fail or show significant drift. Additionally, EROAM produces high-quality panoramic reconstructions that preserve fine structural details, demonstrating its practical utility in real-world applications.

Real-time Demonstration of EROAM

Problem Definition

Event cameras represent a revolutionary advancement in visual sensing technology. Unlike conventional cameras that capture images at fixed intervals, event cameras operate asynchronously, detecting and reporting per-pixel brightness changes with microsecond precision. Each event is encoded as a tuple ek = (xk, tk, pk), where xk = (uk, vk)T represents the pixel location, tk the timestamp, and pk the polarity of the brightness change. Accurate rotational motion estimation remains a fundamental challenge in computer vision and robotics applications. Traditional frame-based cameras struggle with rapid rotations due to inherent limitations such as motion blur, limited dynamic range, and large inter-frame displacements. Event cameras, with their high temporal resolution (>1MHz), high dynamic range (>120dB), and freedom from motion blur, offer unique advantages in capturing and tracking rapid rotational movements with unprecedented precision.

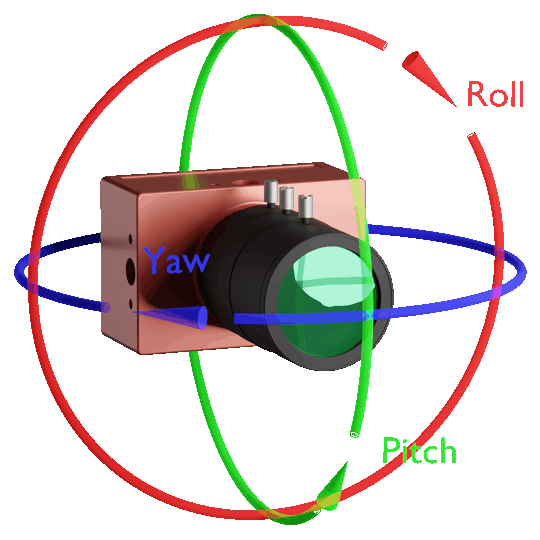

Event camera rotation

Event camera sequence

The challenge of rotational motion estimation is fundamental in computer vision and robotics. While traditional frame-based cameras struggle with rapid rotations due to motion blur and limited exposure control, event cameras offer unique advantages through their high temporal resolution and freedom from motion blur, enabling potential accurate capture of rapid rotational movements.

Methodology

Overview

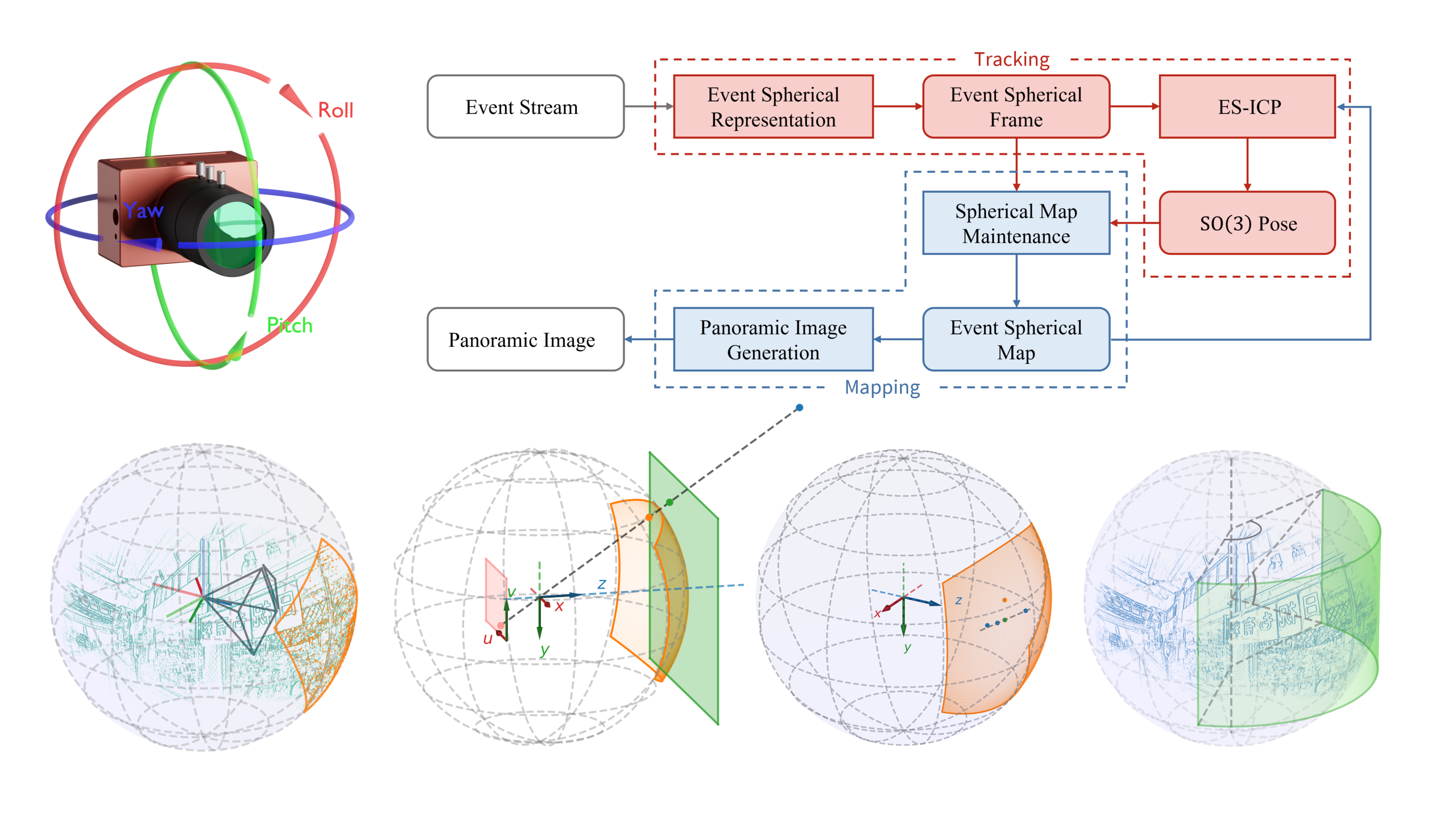

EROAM introduces a novel approach to event-based rotational motion estimation by combining spherical event representation with an efficient ICP-based optimization framework. Our system processes incoming event streams through two main components: a tracking module that estimates camera rotation in real-time using Event Spherical ICP (ES-ICP), and a mapping module that maintains a continuous spherical event map while enabling high-quality panoramic reconstruction.

Odometry and Mapping Overview

Event Spherical Representation

We propose a novel spherical representation of events that offers two significant advantages: (1) Simplification of rotational motion formula, and (2) Enhanced spatial resolution through continuous mapping.

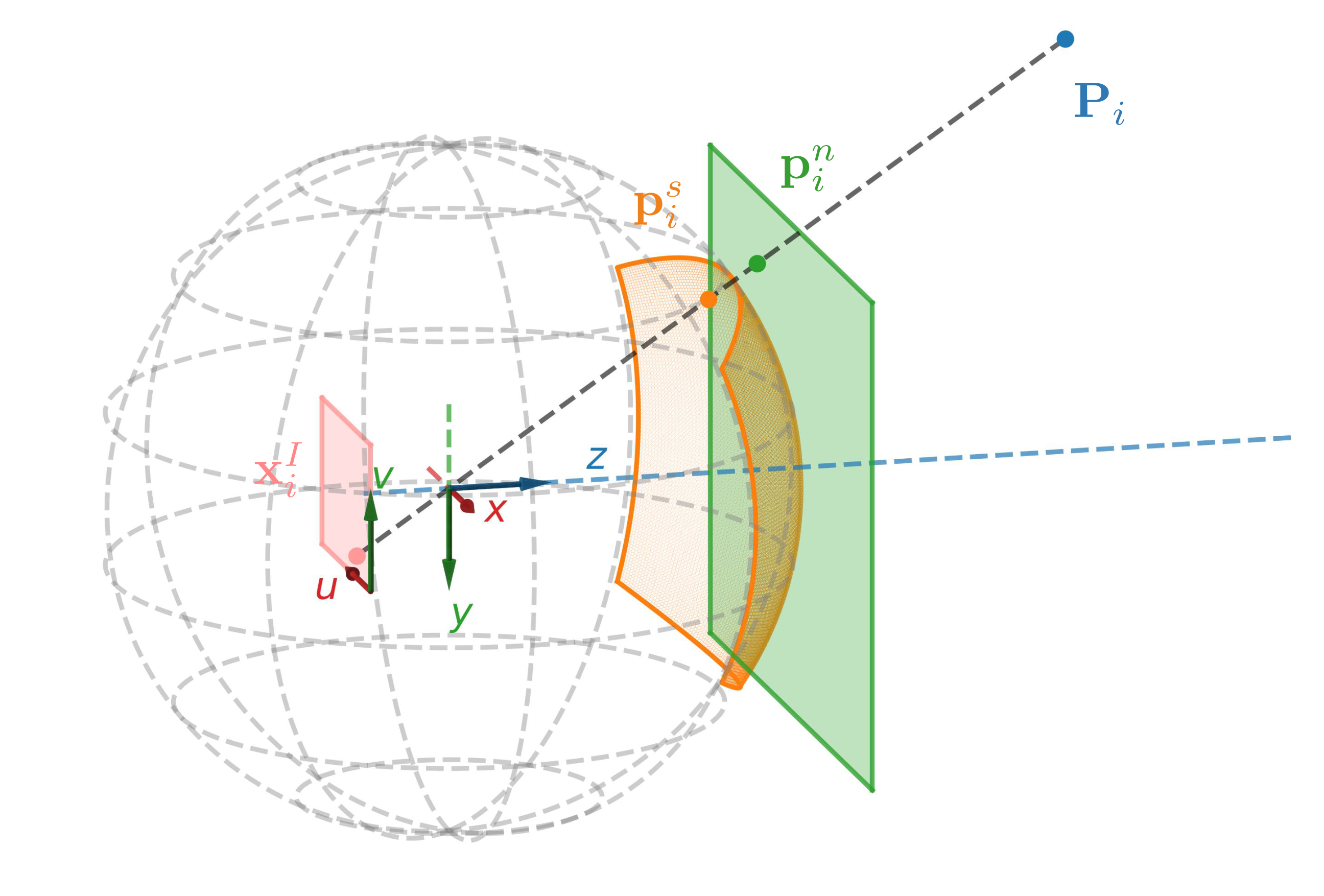

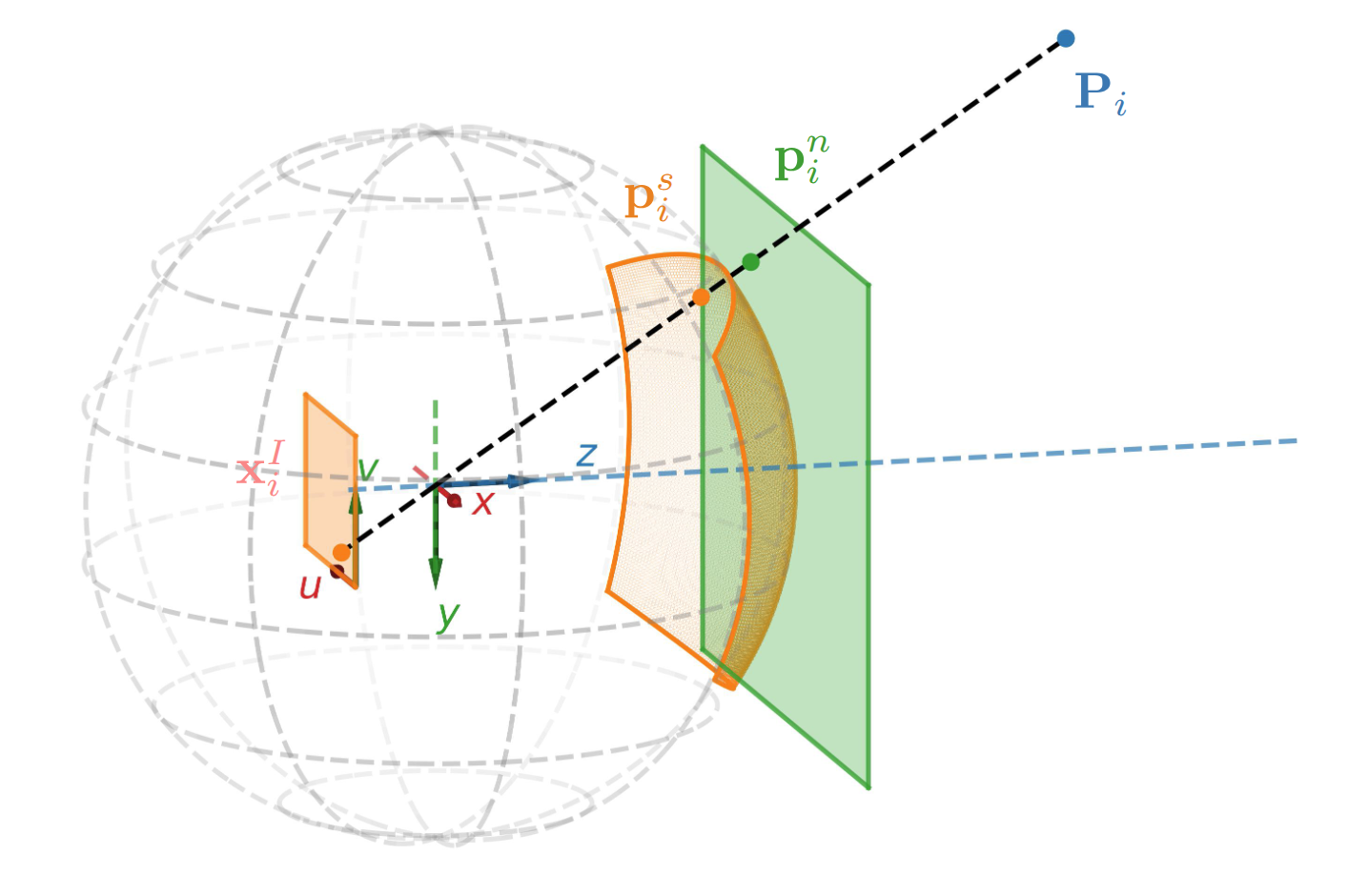

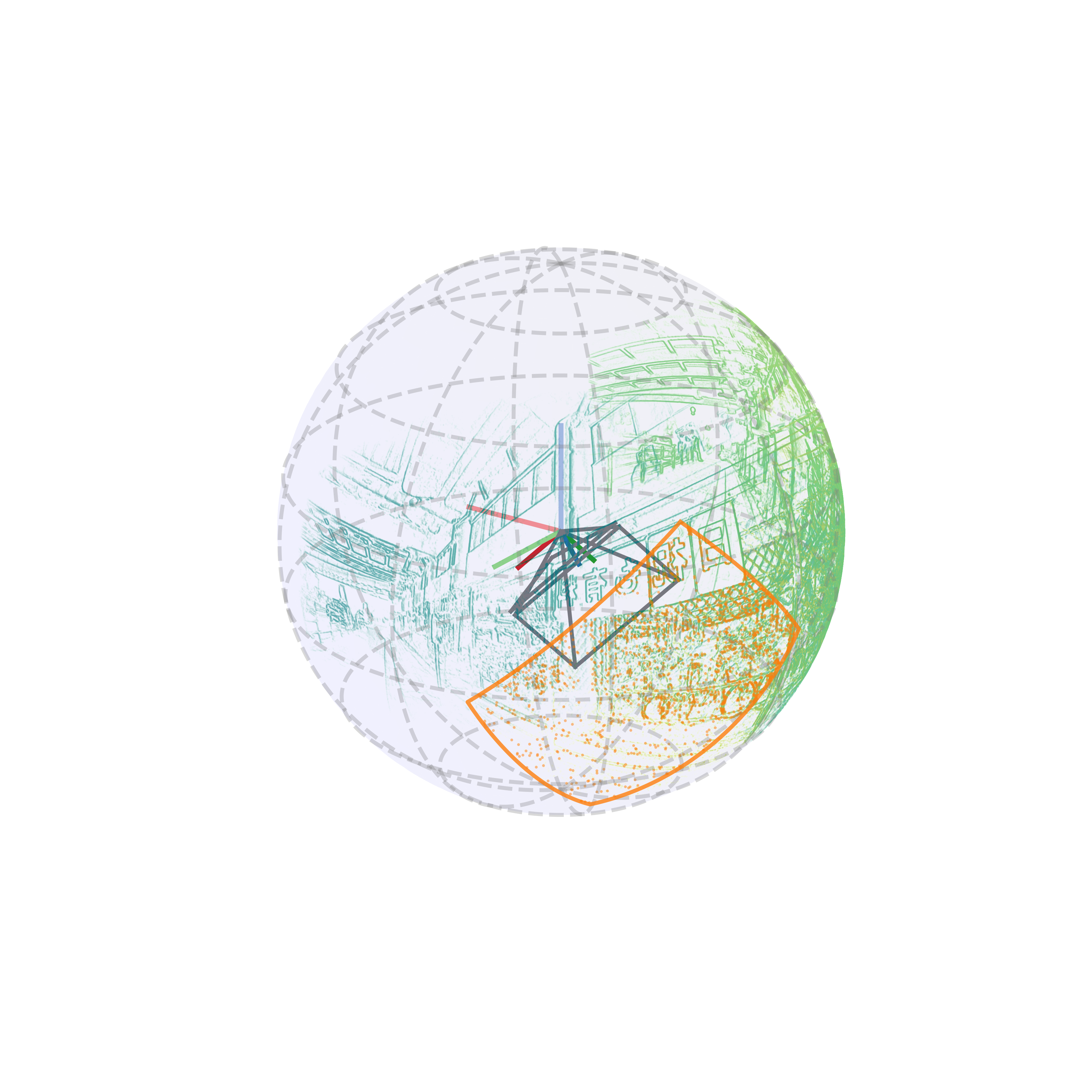

Spherical projection process showing the transformation from pixel coordinates to unit sphere

Event Spherical ICP (ES-ICP)

The core of our approach lies in the Event Spherical Iterative Closest Point (ES-ICP) algorithm. Unlike existing approaches that rely on event generation models or contrast maximization, our method efficiently matches and aligns event projections in continuous spherical space.

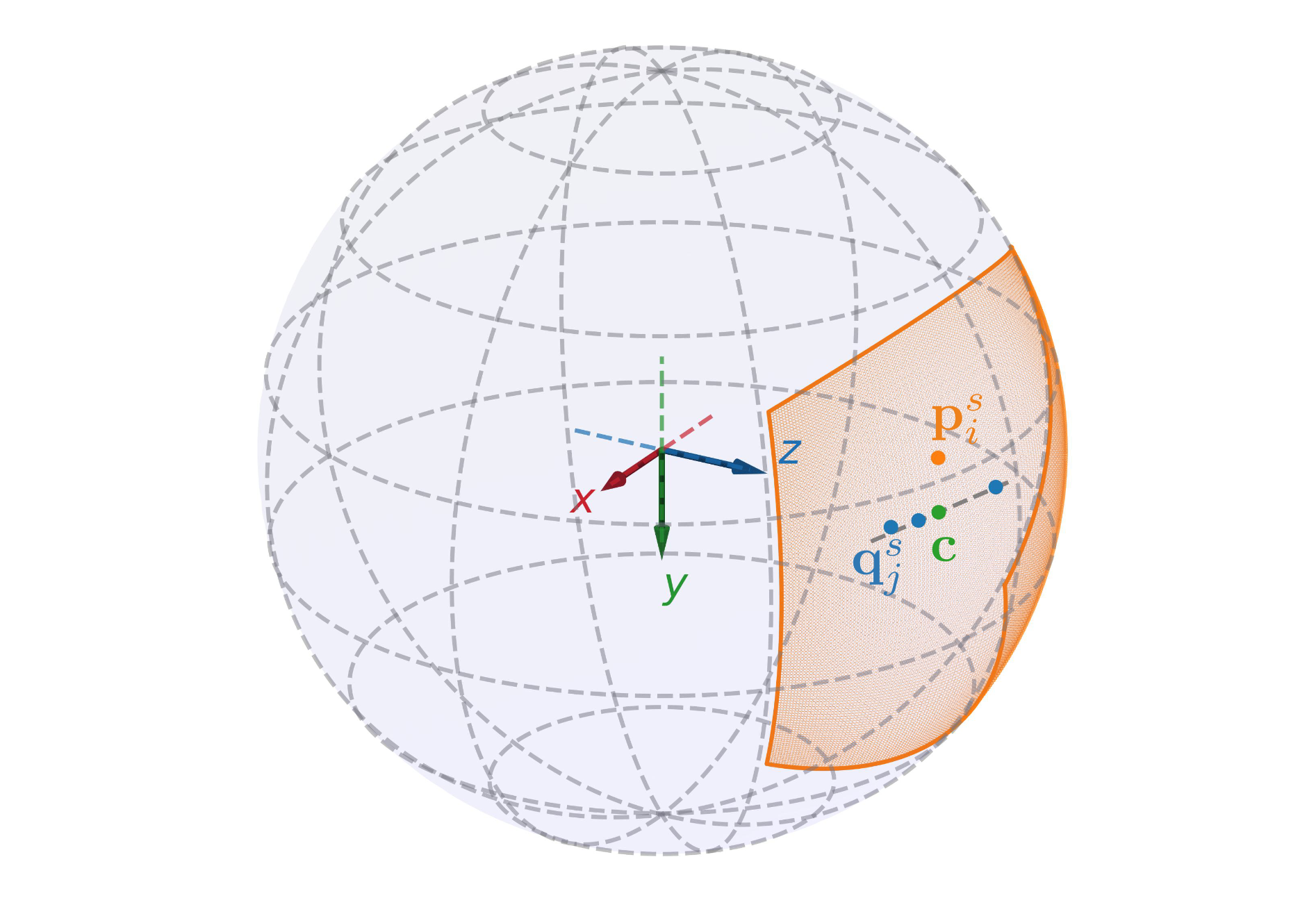

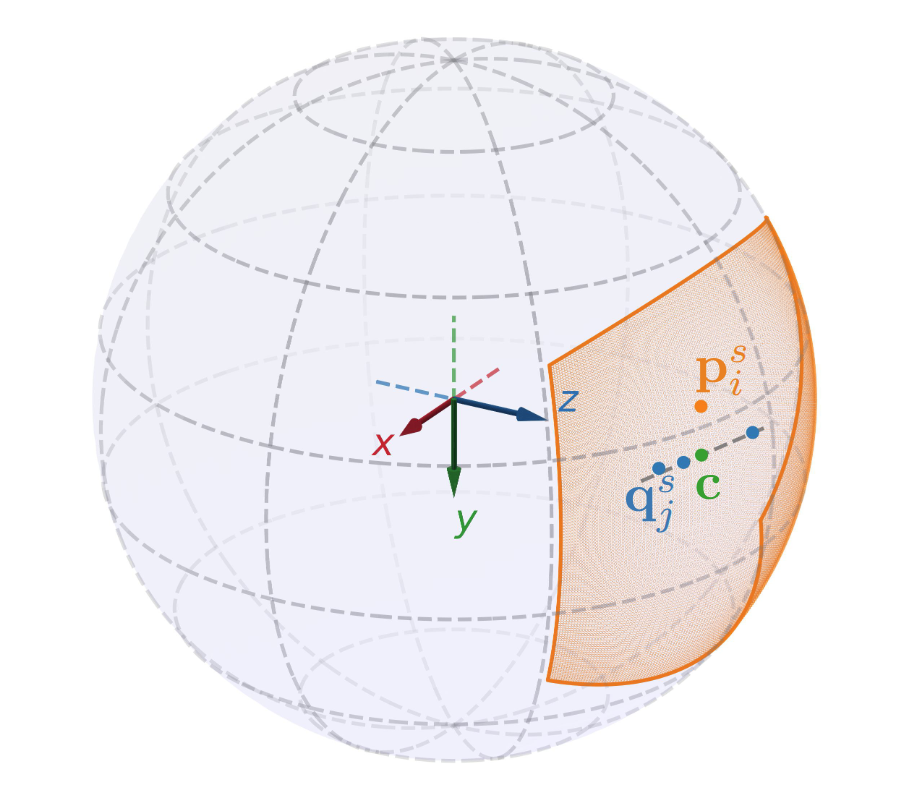

ES-ICP optimization process visualization showing point-to-line error minimization on the unit sphere

Panorama generation

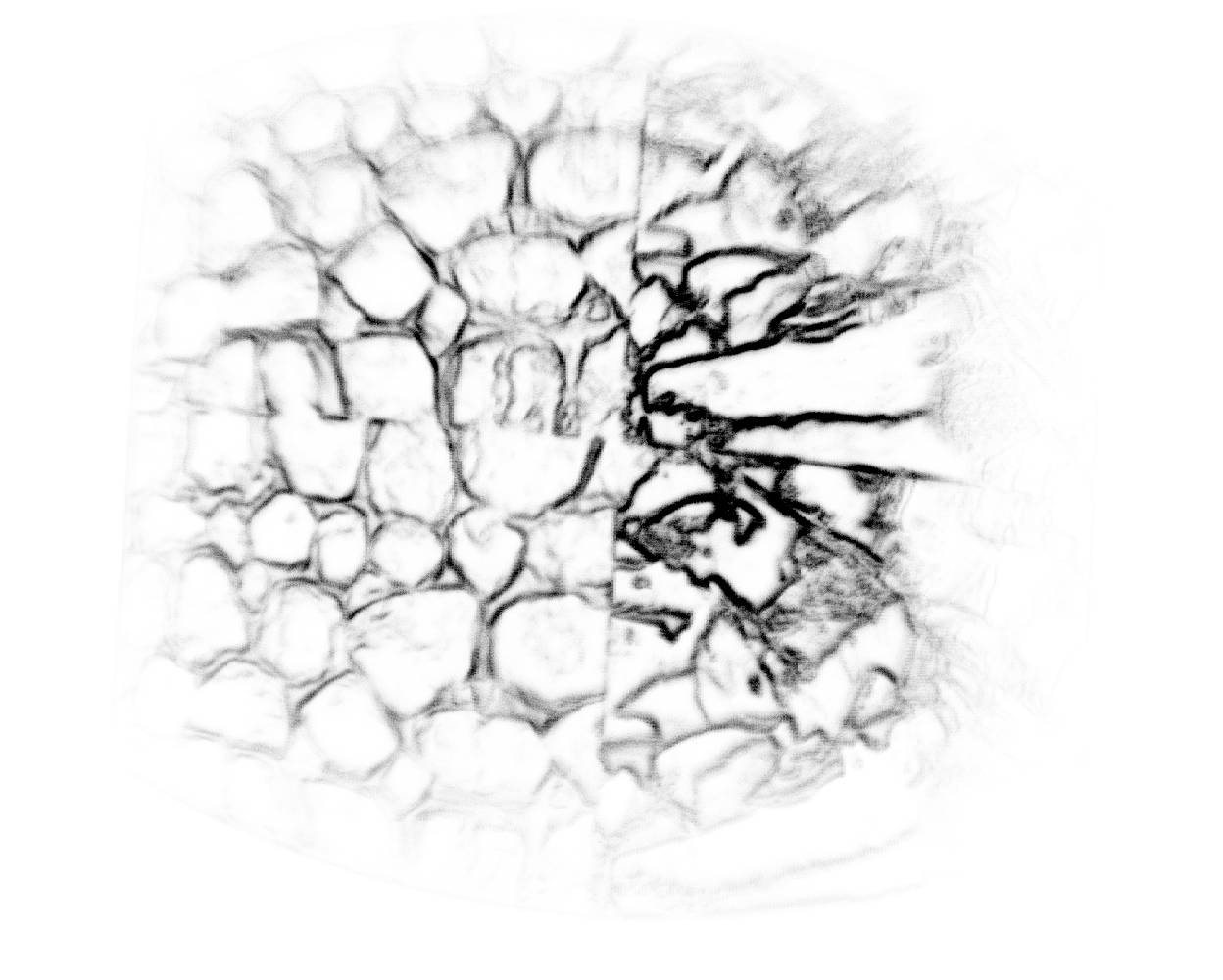

A key advantage of our spherical event representation is its ability to generate high-quality panoramic images at arbitrary resolutions. Unlike traditional methods that operate in discretized pixel space, our continuous spherical mapping approach maintains complete independence from resolution constraints. The panorama generation process involves projecting events from the unit sphere onto a surrounding cylinder, which is then unwrapped to form a detailed 2D panoramic representation. This approach preserves fine structural details while ensuring consistent quality across the entire field of view.

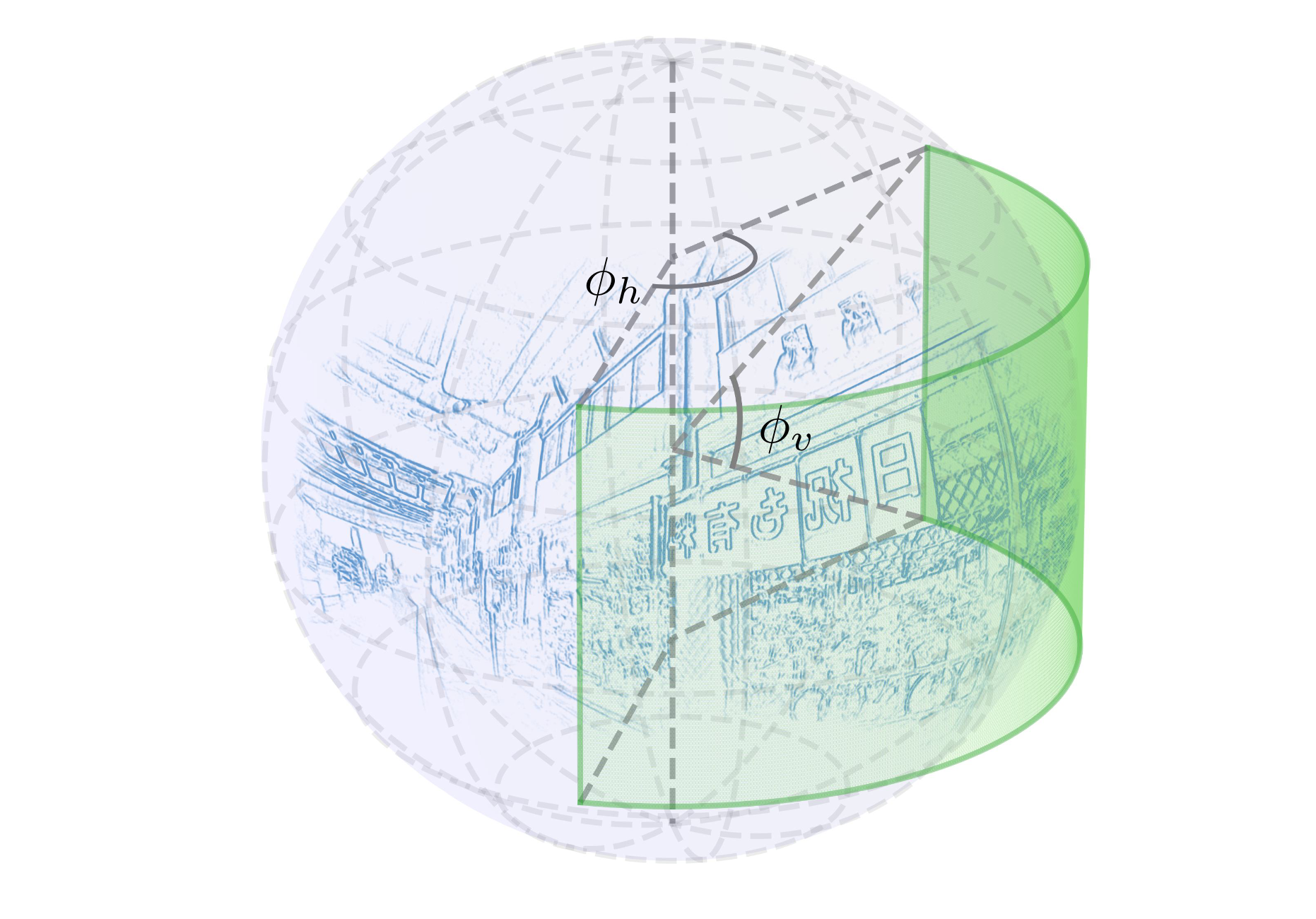

Projection from spherical event map to panoramic image

Experiments

Evaluation on ECRot Dataset

We conduct comprehensive experiments on both synthetic and real-world datasets. On the ECRot dataset, EROAM significantly outperforms state-of-the-art methods in terms of accuracy and robustness.

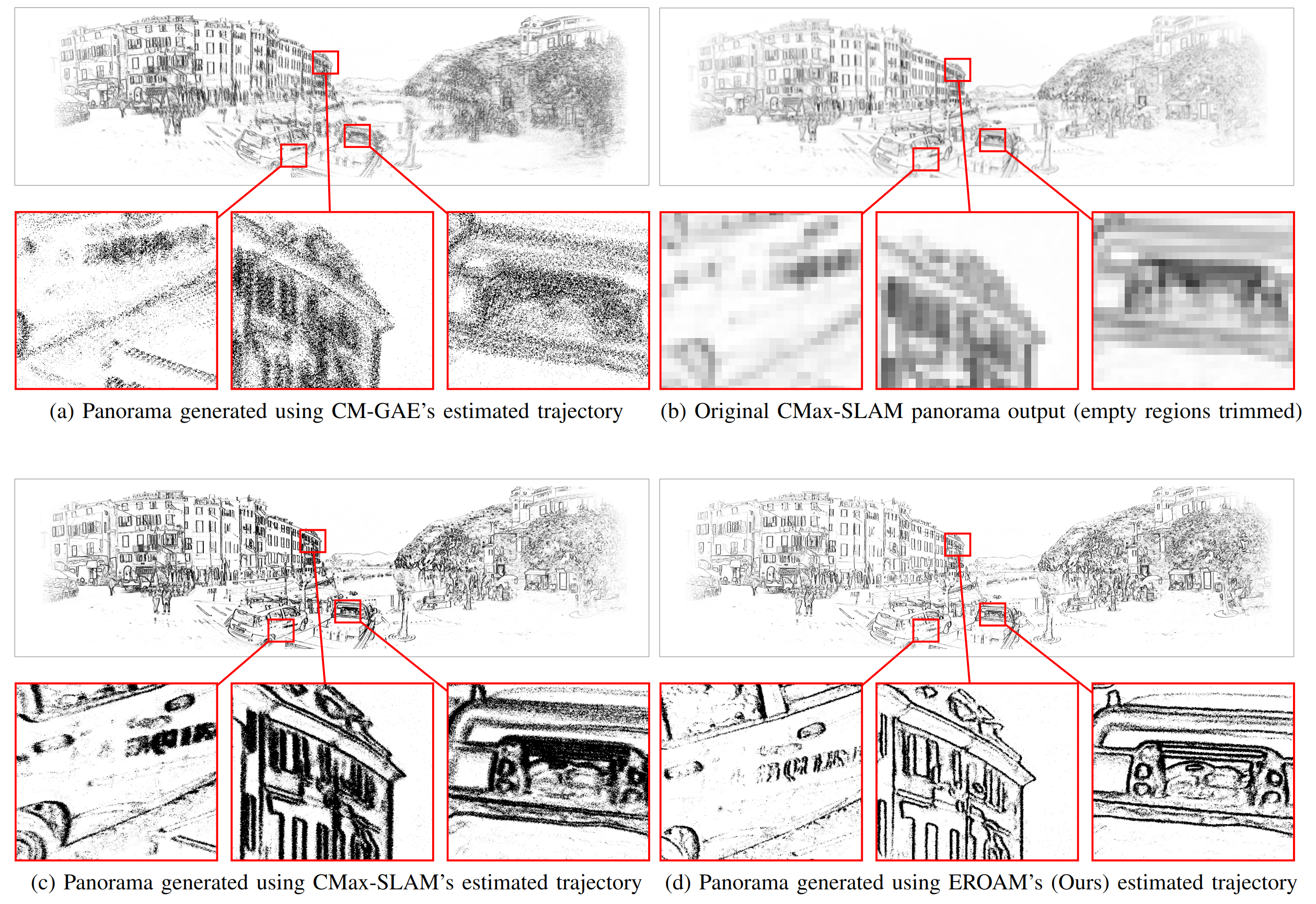

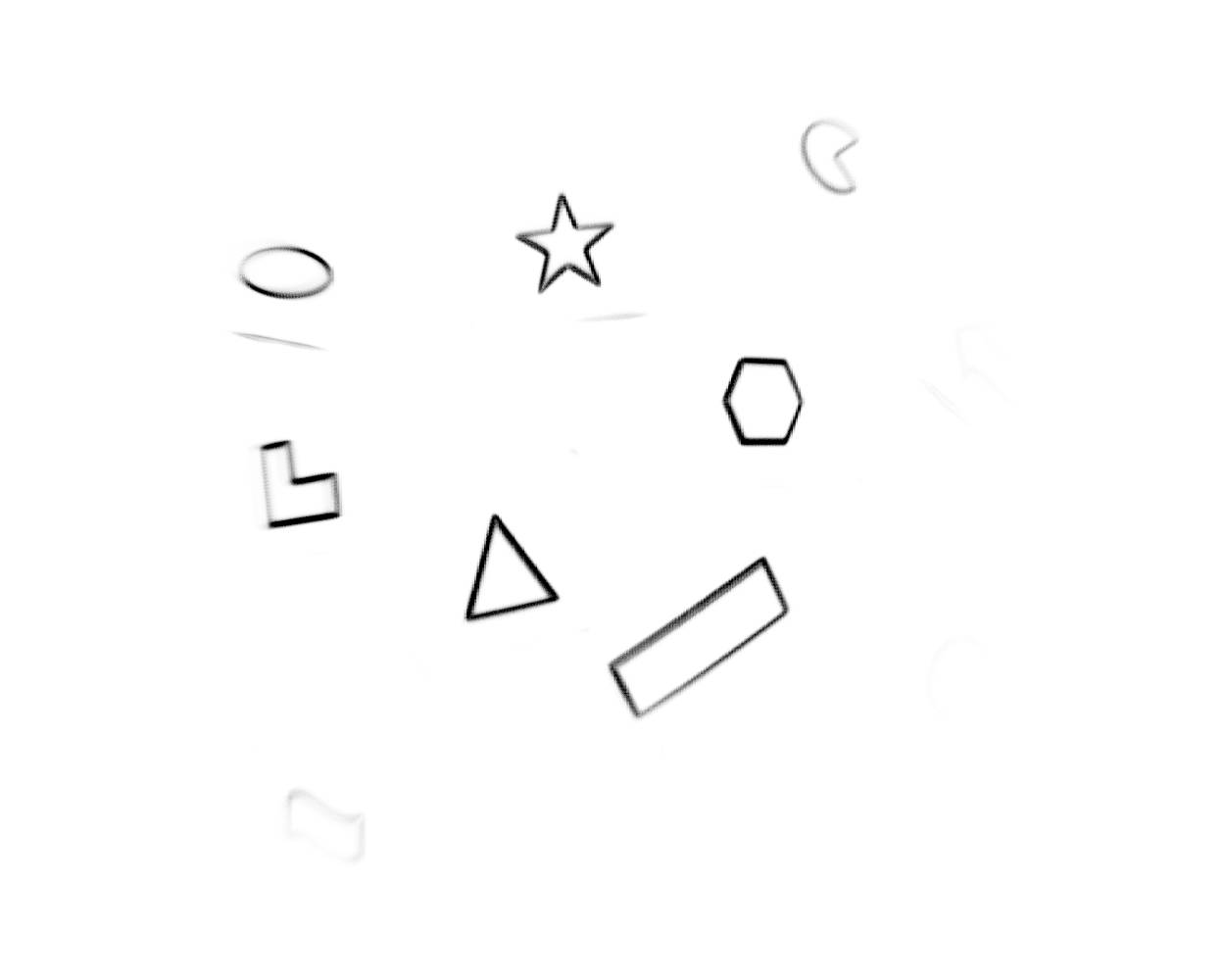

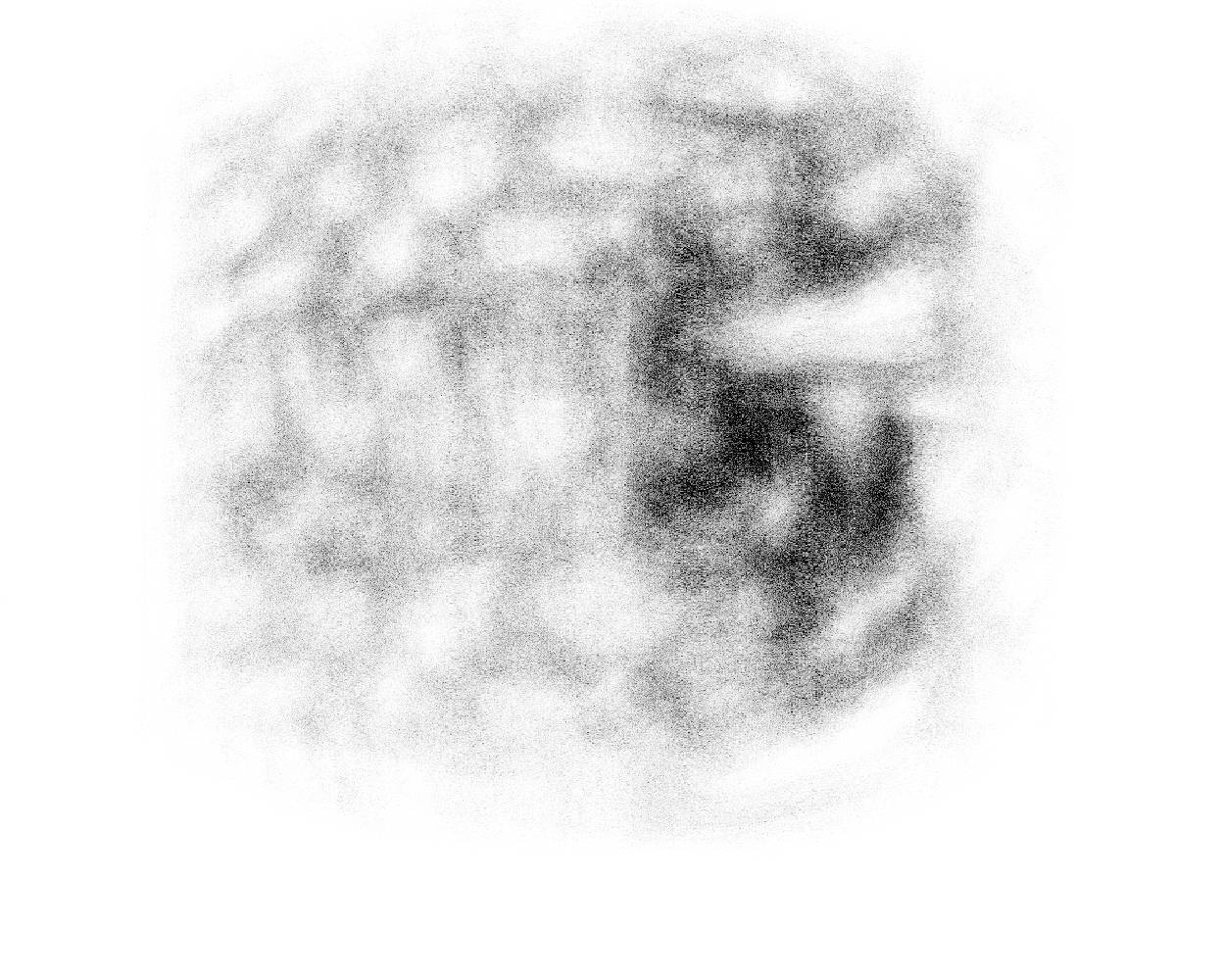

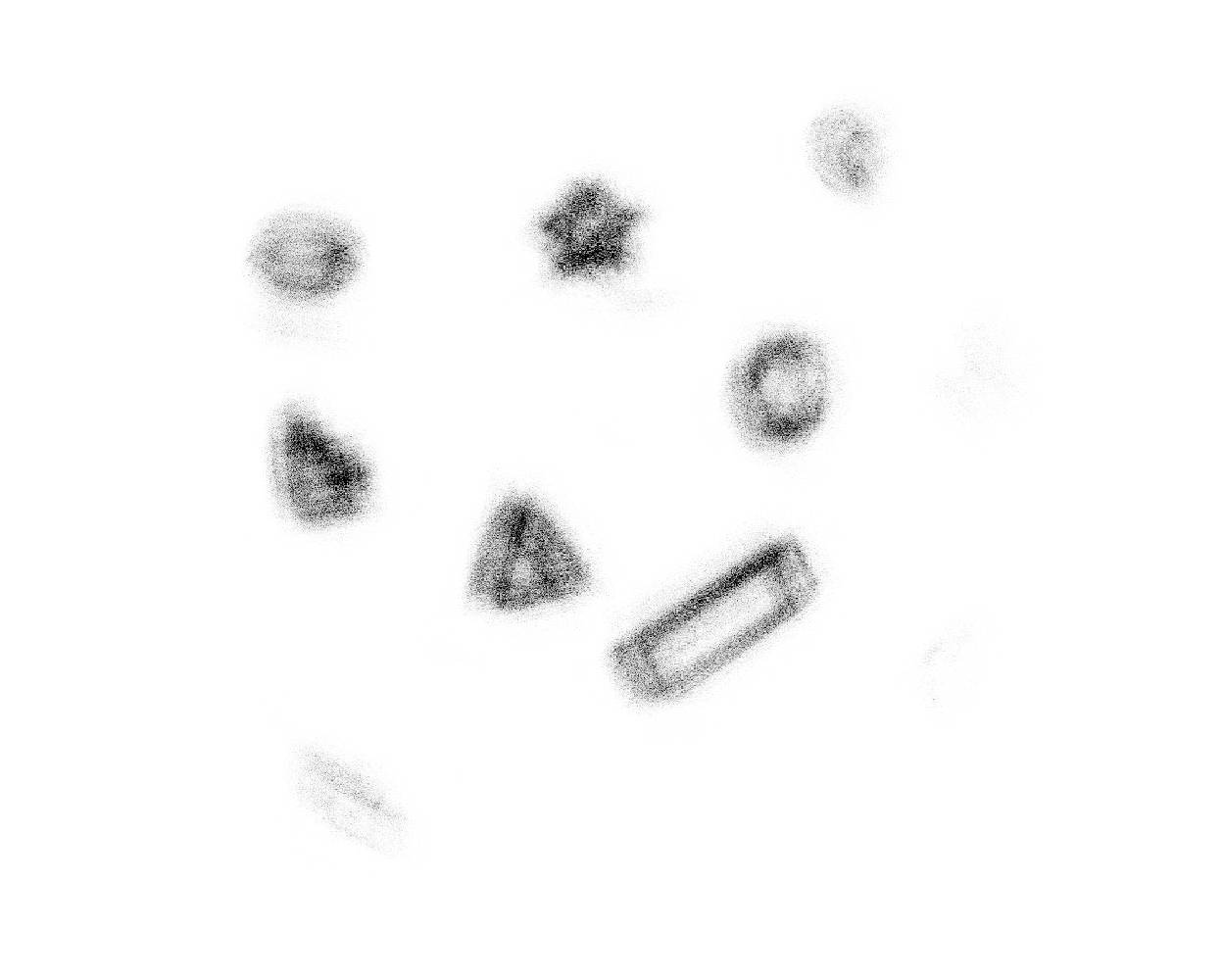

Qualitative comparison of panoramic mapping results on the town sequence from ECRot dataset. (a,c,d) show panoramas generated using our unified pipeline (7617 × 2000 resolution) with different methods’ estimated trajectories, where identical event window size (0.2 ms) and colorization scheme are applied. (b) shows the original panorama output from CMax-SLAM’s implementation for reference. The zoomed-in regions highlight that our method produces sharper edges and clearer structural details compared to other approaches.

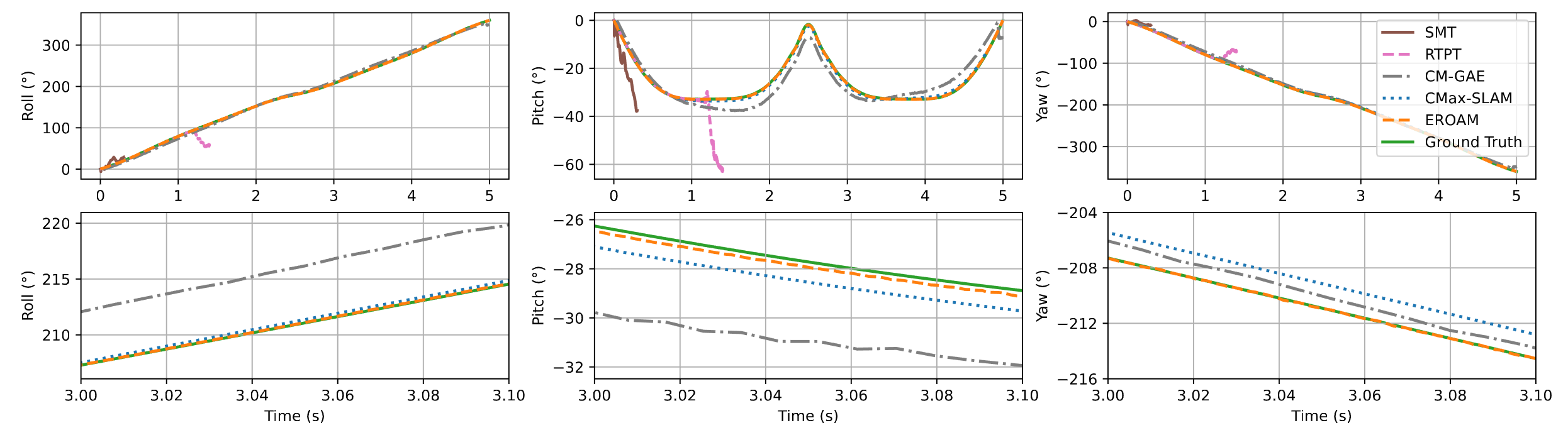

Rotation estimation results on the town sequence from ECRot dataset. The top row shows the full trajectories of roll, pitch, and yaw angles, while the bottom row shows the zoomed-in views from 3.00 s to 3.10 s. Our method (EROAM) achieves comparable accuracy with the ground truth, demonstrating robust rotation estimation performance. The trajectories of SMT and RTPT are truncated after significant deviation from ground truth for better visualization clarity.

Extended Simulation Analysis

To evaluate the robustness of our method, we conducted extended simulation experiments under more challenging conditions, including high angular velocities (up to 393.21°/s) and long sequences (up to 80s).

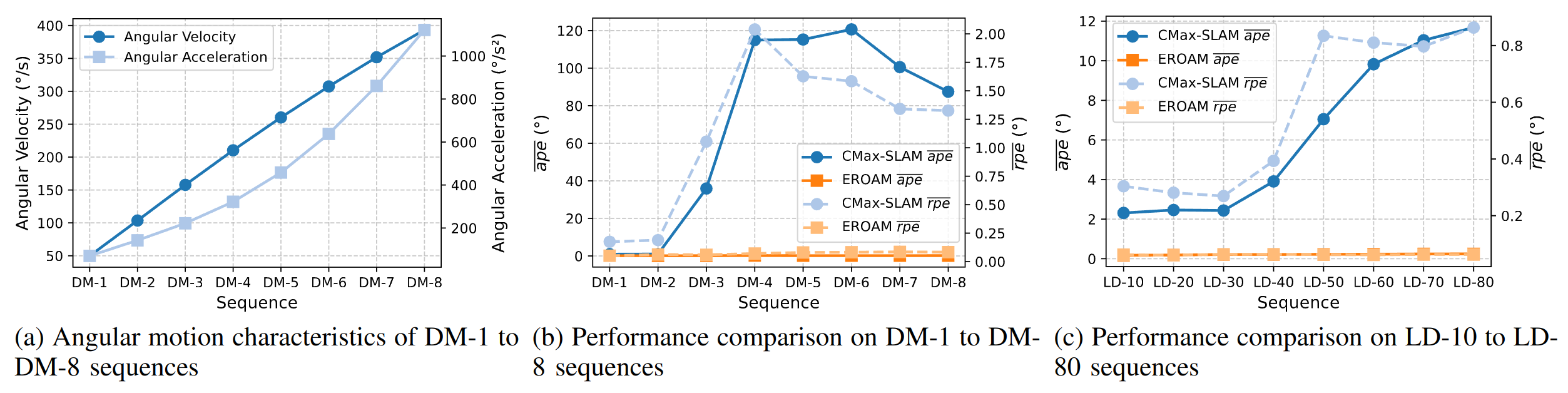

Quantitative evaluation results. (a) Shows the angular velocity (49.83 °/s to 393.21 °/s) and acceleration (70.41 °/s2 to 1121.32 °/s2) characteristics of DM-1 to DM-8 sequences (each 5 s long). (b) Compares the ape and rpe metrics across DM-1 to DM-8 sequences with increasing angular velocities. (c) Compares the ape and rpe metrics for LD-10 to LD-80 sequences of increasing durations (10 s to 80 s).

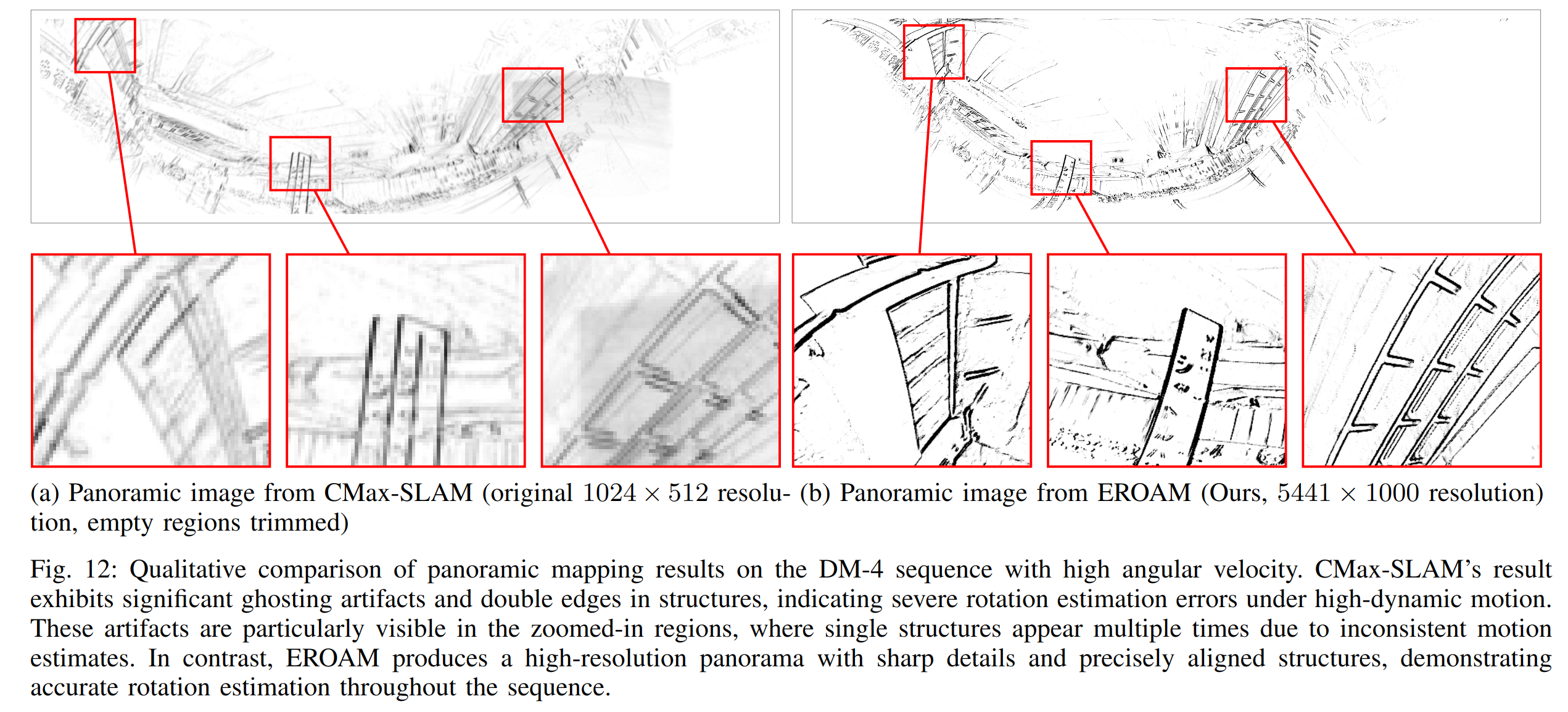

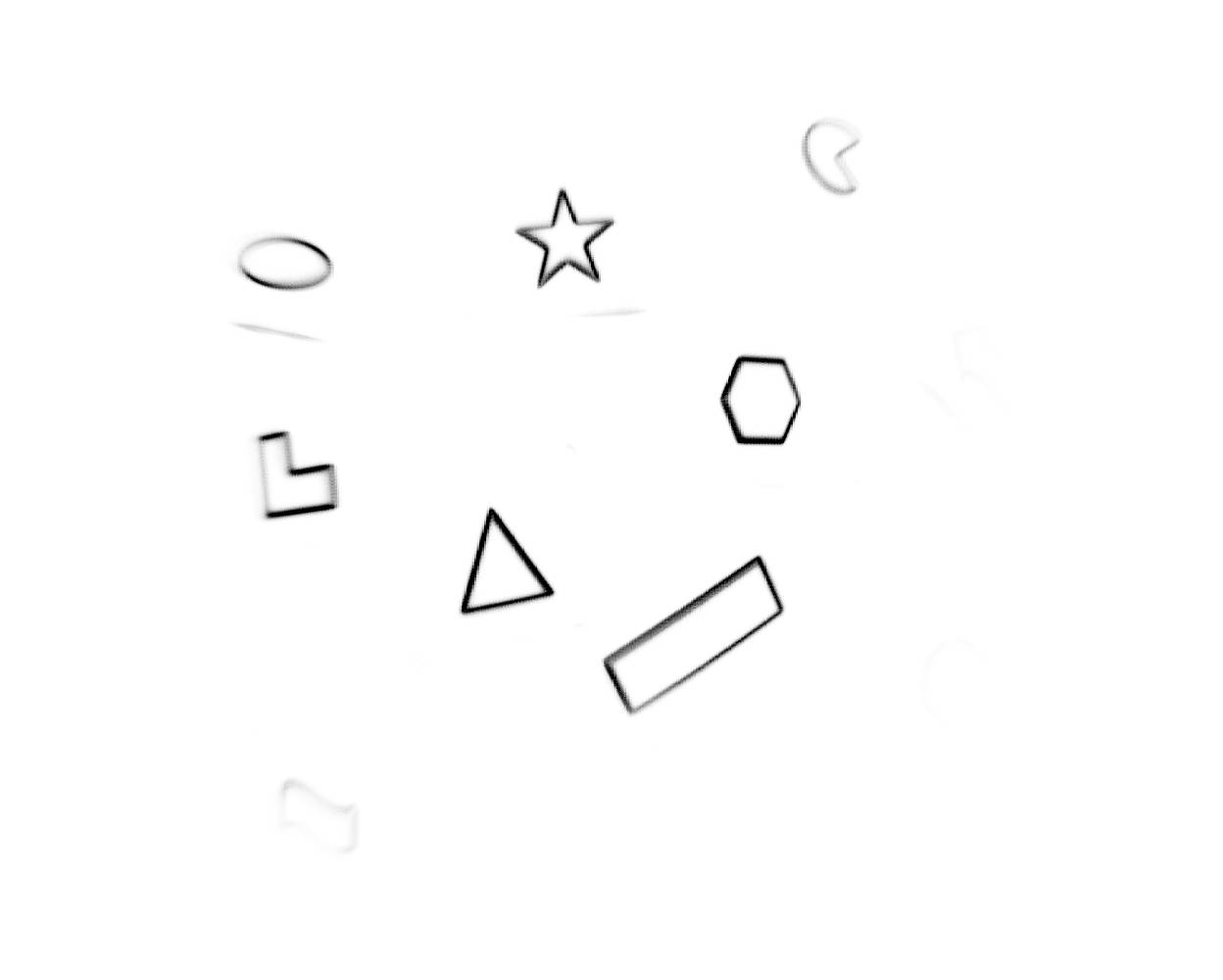

Qualitative comparison of panoramic mapping results on the DM-4 sequence with high angular velocity. CMax-SLAM's result exhibits significant ghosting artifacts and double edges in structures, indicating severe rotation estimation errors under high-dynamic motion. These artifacts are particularly visible in the zoomed-in regions, where single structures appear multiple times due to inconsistent motion estimates. In contrast, EROAM produces a high-resolution panorama with sharp details and precisely aligned structures, demonstrating accurate rotation estimation throughout the sequence.

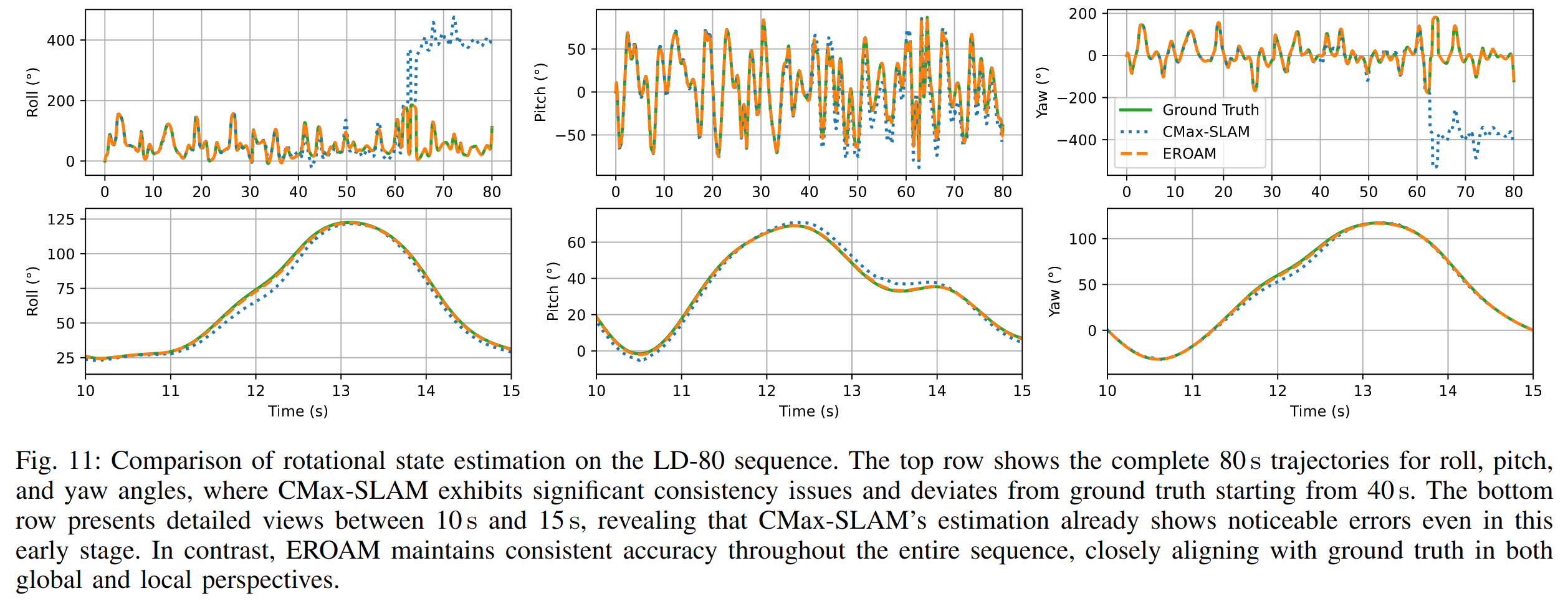

Comparison of rotational state estimation on the LD-80 sequence. The top row shows the complete 80 s trajectories for roll, pitch, and yaw angles, where CMax-SLAM exhibits significant consistency issues and deviates from ground truth starting from 40 s. The bottom row presents detailed views between 10 s and 15 s, revealing that CMax-SLAM's estimation already shows noticeable errors even in this early stage. In contrast, EROAM maintains consistent accuracy throughout the entire sequence, closely aligning with ground truth in both global and local perspectives.

Real-world Results

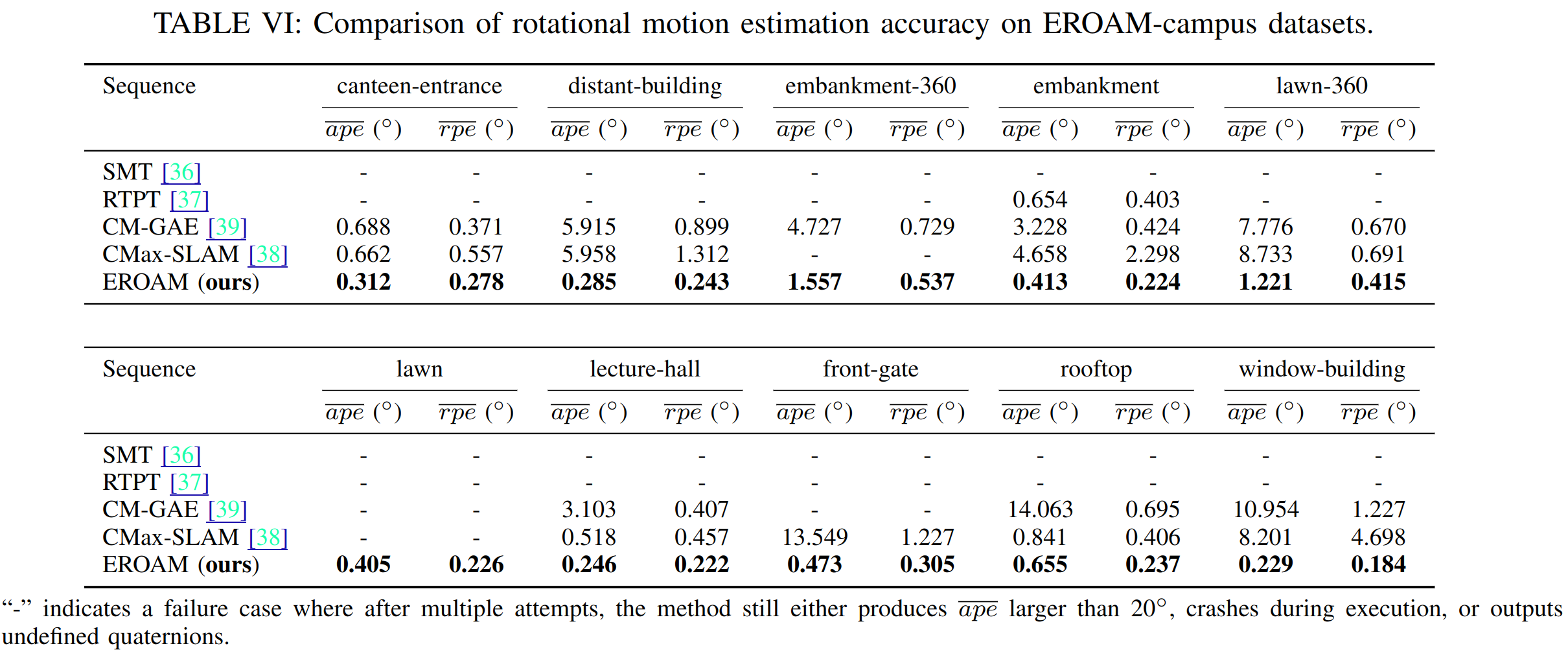

We validate our method's performance in real-world scenarios using our EROAM-campus dataset, collected with an iniVation DVXplorer event camera and Livox Avia LiDAR for ground truth.

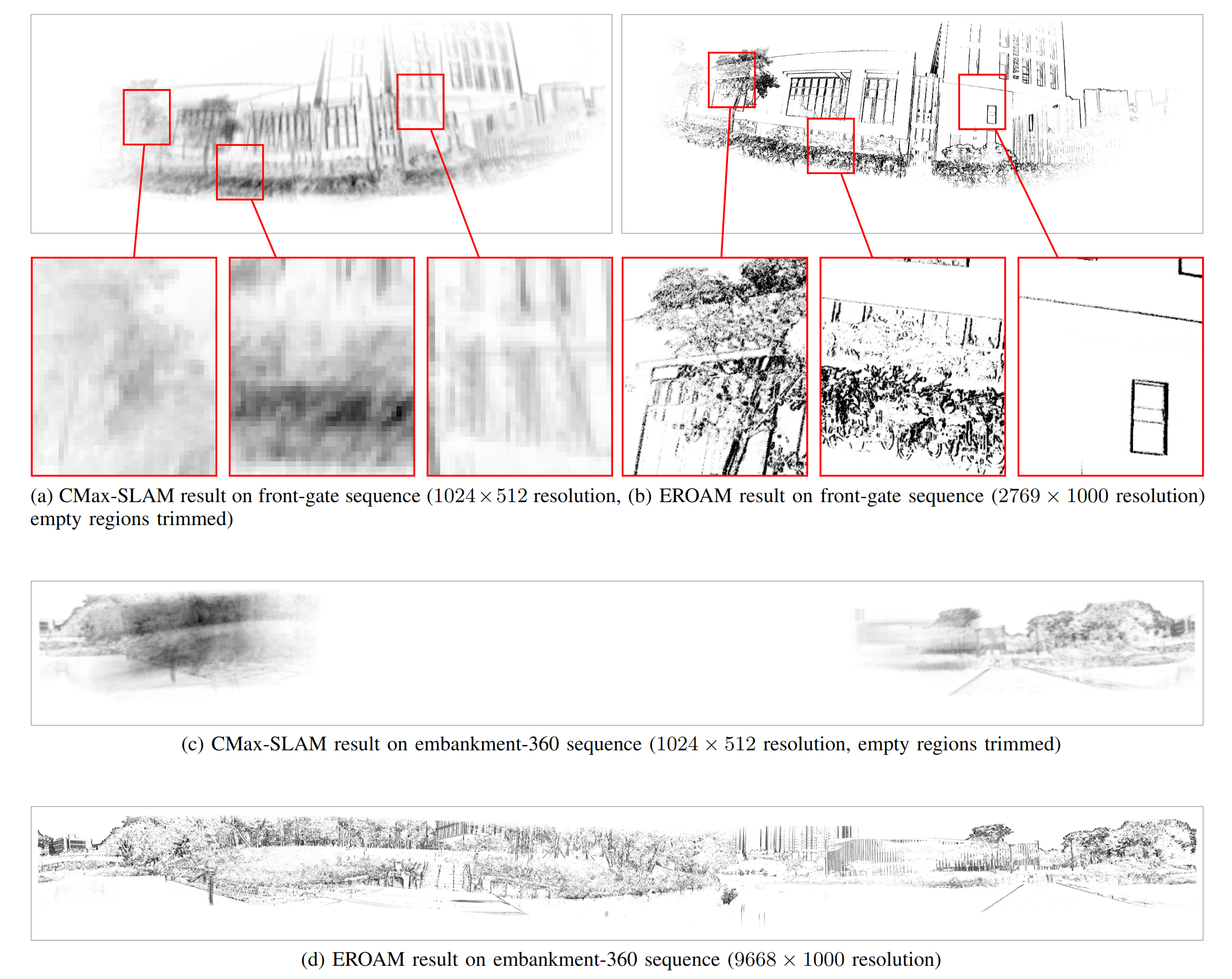

Qualitative comparison of panoramic mapping results on real-world sequences. The zoomed-in regions in (a,b) highlight the superior structural clarity achieved by our method compared to CMax-SLAM’s results with ghosting artifacts. The full 360° panoramas in (c,d) demonstrate EROAM’s ability to maintain consistent reconstruction quality across extended views.

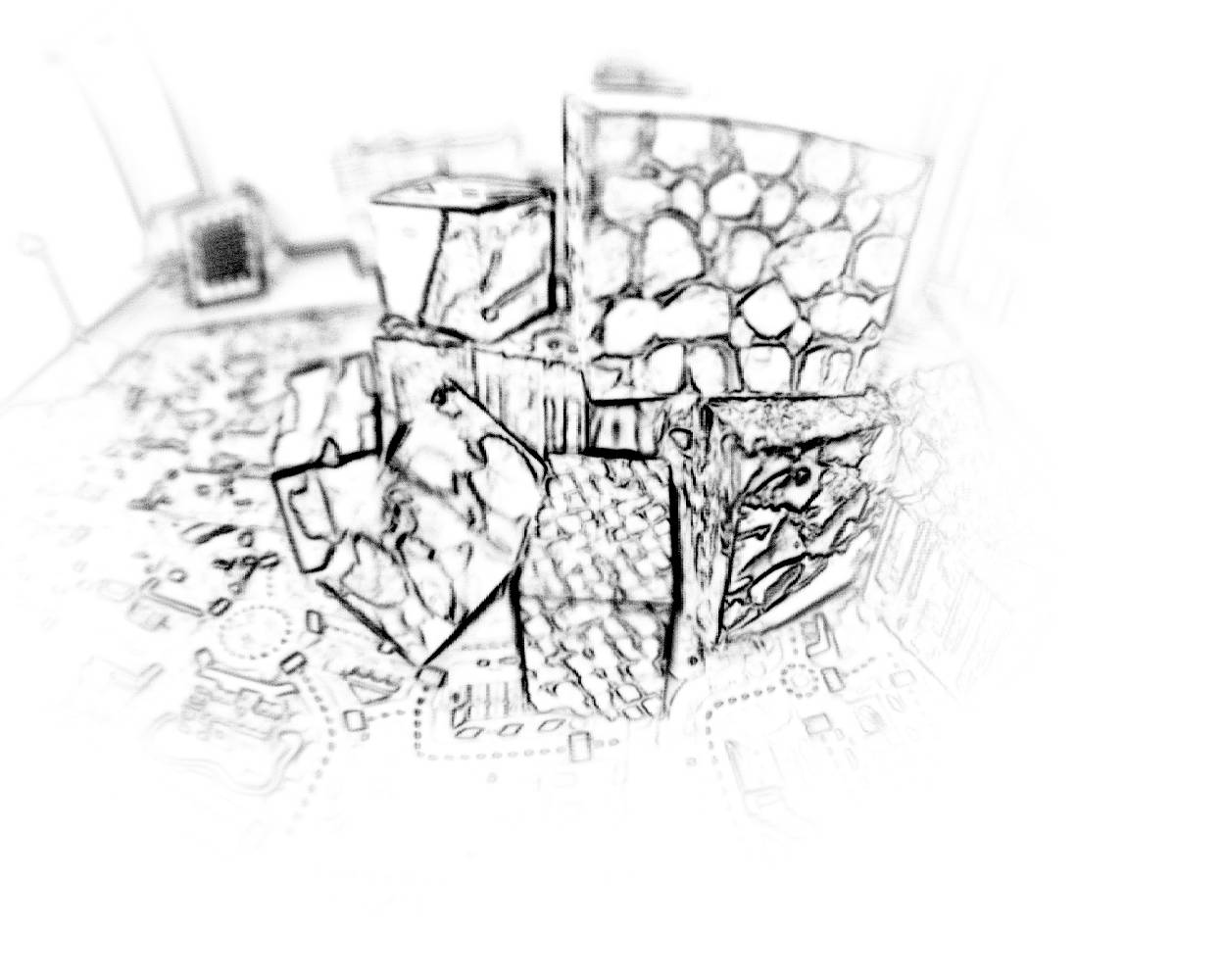

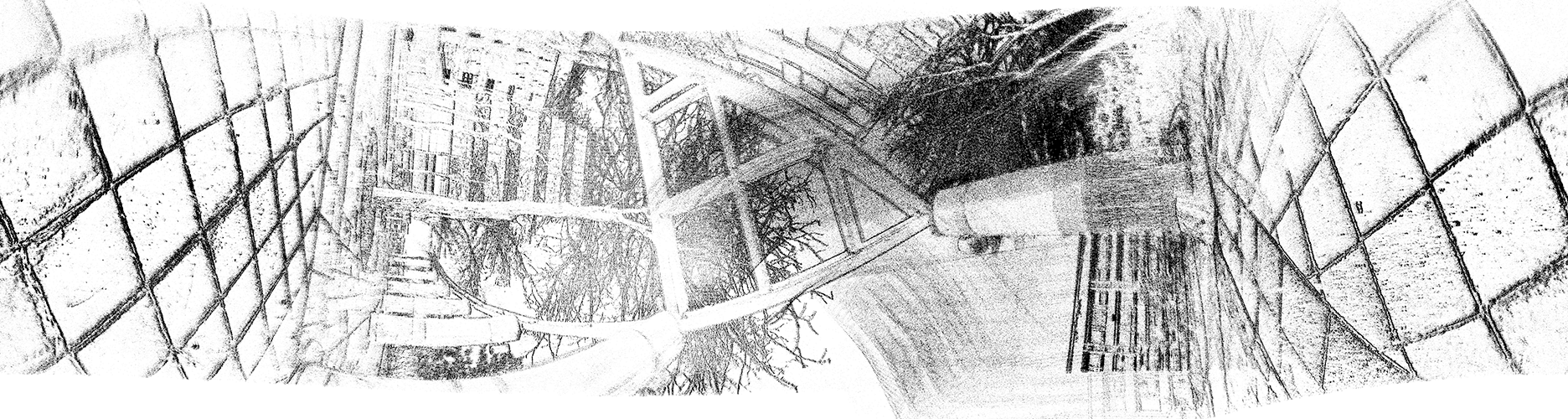

Additional visualization results from EROAM on different sequences. Each panorama demonstrates high-quality reconstruction with precise structure alignment and sharp details, as highlighted in the zoomed-in regions. These results showcase EROAM’s consistent performance across various challenging scenarios with different motion patterns and scene structures.

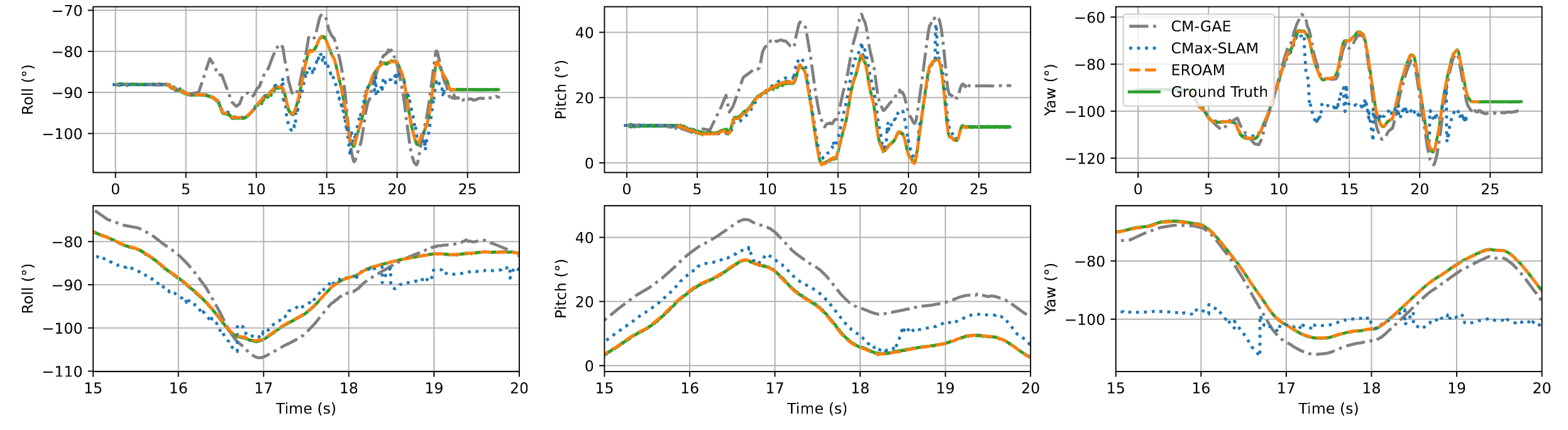

Comparison of rotational state estimation on the window-building sequence. The top row shows the complete trajectories for roll, pitch, and yaw angles, while the bottom row presents detailed views between 15 s and 20 s. Our method (EROAM) maintains accurate tracking throughout the sequence, closely following the ground truth trajectory, while CM-GAE and CMax-SLAM show noticeable deviations, particularly evident in the zoomed-in views.

Runtime Analysis

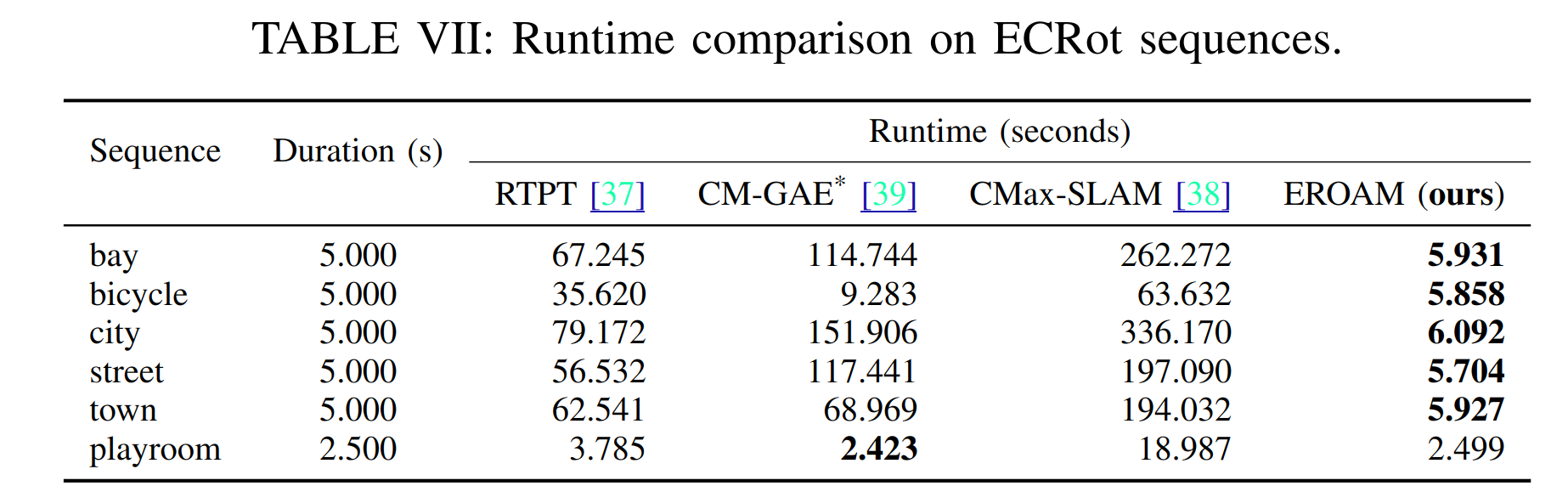

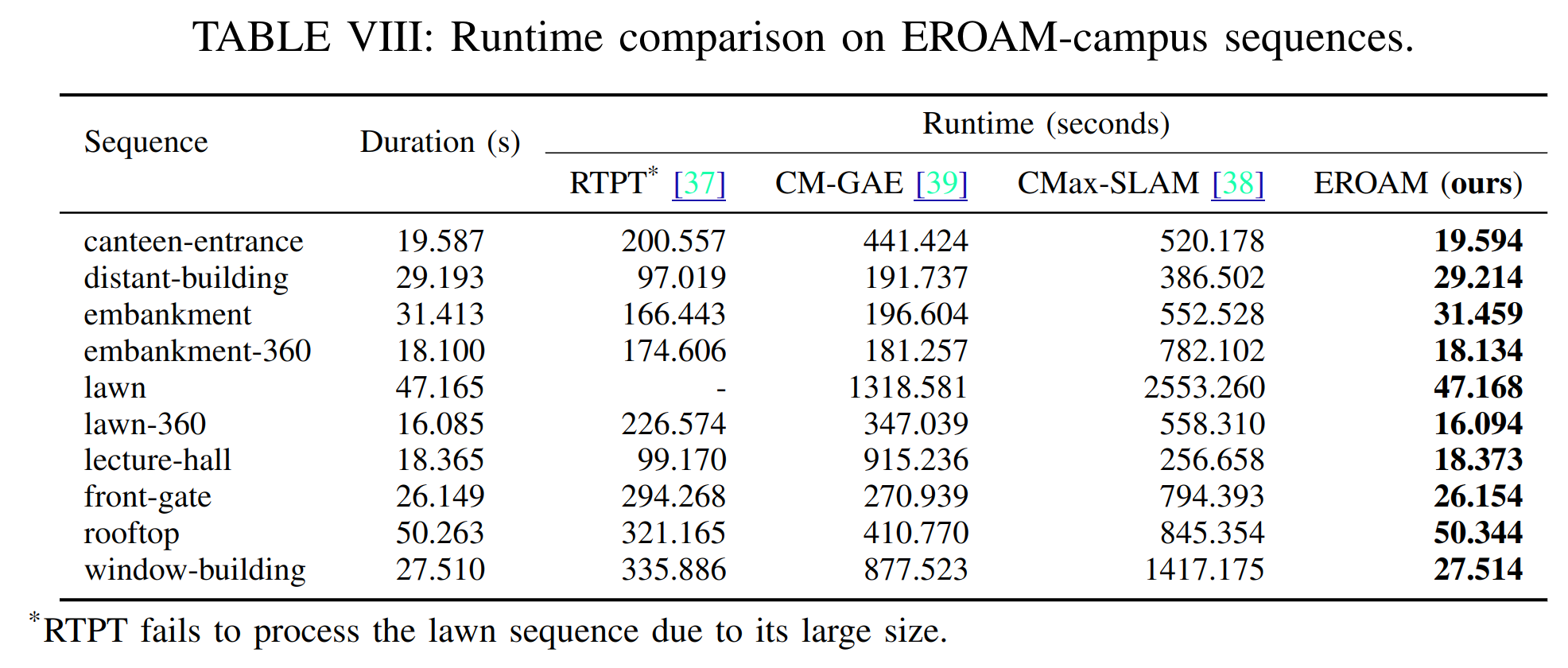

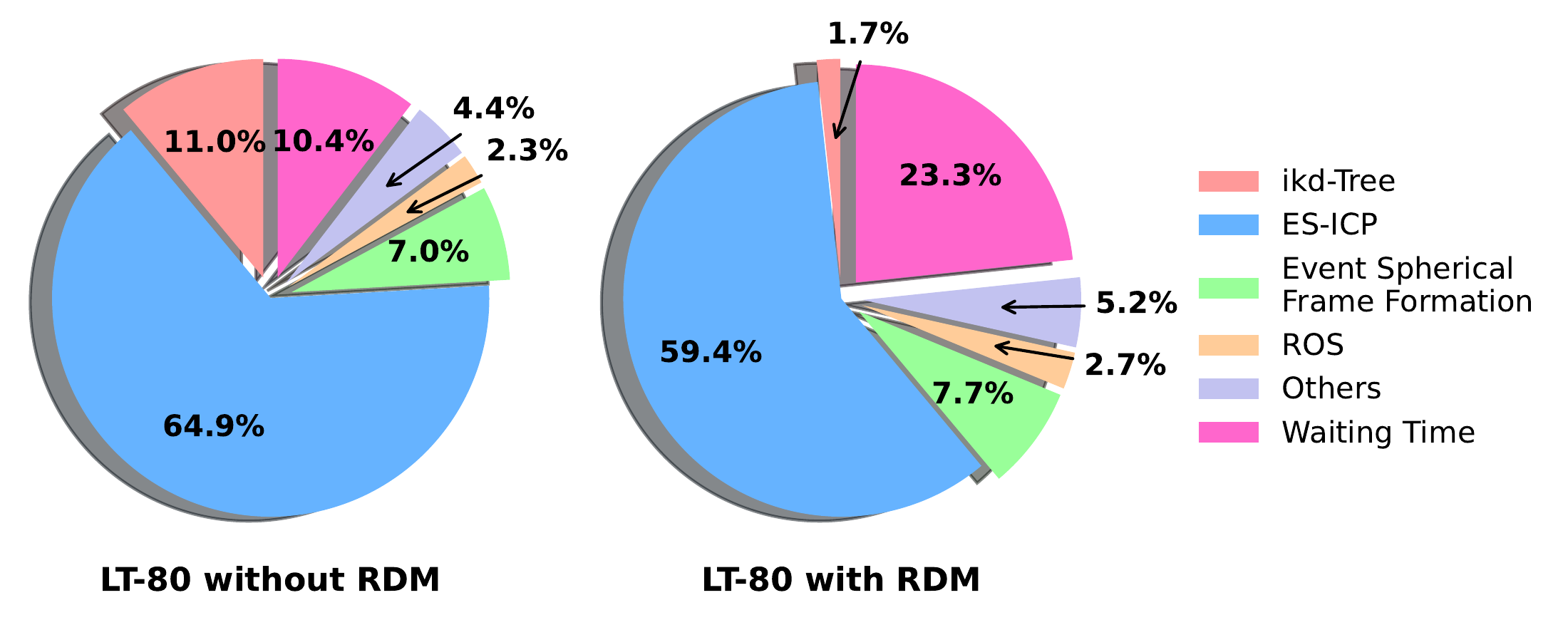

EROAM demonstrates superior computational efficiency across both synthetic and real-world datasets. Our method achieves real-time performance while requiring only CPU resources, processing most sequences at their natural speed. This efficiency stems from two key design choices: our spherical map representation that simplifies map maintenance, and our ES-ICP algorithm that enables parallel processing of point-to-line distances. Comparative analysis shows that EROAM provides significant speedups compared to existing methods - up to 17.6× faster than CMax-SLAM and 6.2× faster than CM-GAE on challenging sequences.

Citation

                            @article{xing2024eroam,
                                title={EROAM: Event-based Camera Rotational Odometry and Mapping in Real-time},
                                author={Xing, Wanli and Lin, Shijie and Yang, Linhan and Zhang, Zeqing and Du, Yanjun and Lei, Maolin and Pan, Yipeng and Pan, Jia},
                                journal={arXiv preprint arXiv:2411.11004},
                                year={2024}
                              }

Open Source

The code and datasets will be released upon paper acceptance at https://github.com/wlxing1901/eroam.
